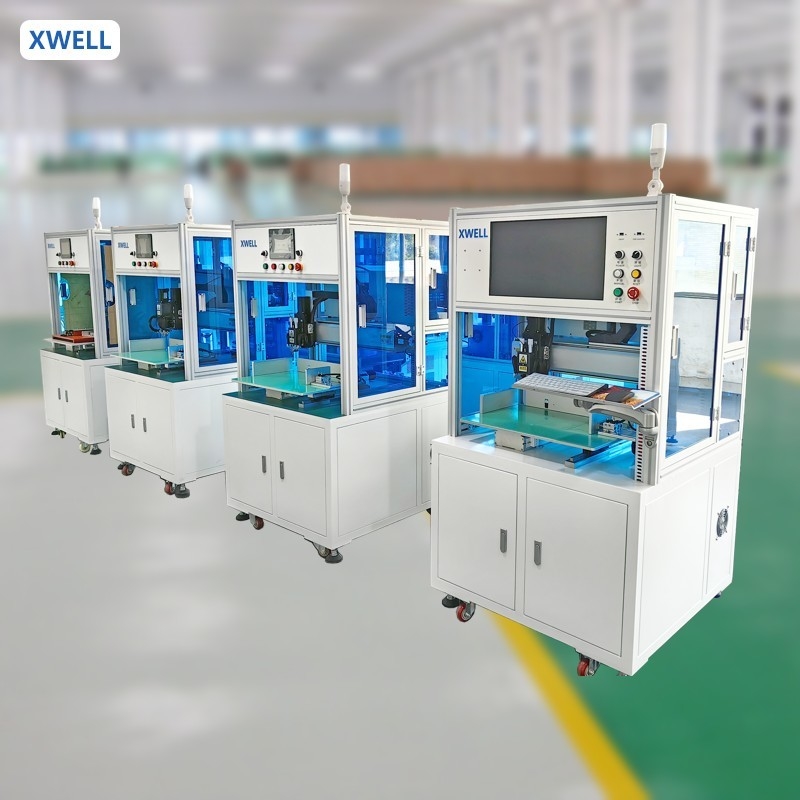

Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | XWELL |
| Certificação: | CE |
| Número do modelo: | MD-ADW |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | USD 11000 - 15000 / pcs |
| Detalhes da embalagem: | Caixa de madeira |
| Tempo de entrega: | 10-15 dias |
| Termos de pagamento: | T/T, Western Union, L/C |
| Habilidade da fonte: | 100pcs por mês |
|
Informação detalhada |
|||
| Tipos de baterias: | Pilha cilíndrica | Número principal: | 2 pcs |
|---|---|---|---|
| Sistema de Operação: | Sistema encaixado | Interface do usuário: | Tela sensível ao toque |
| Fonte de energia: | 5000A / 8000A / 10000A opcional | Eficiência: | 3800pcs/h |
| Tração do equipamento: | 500*350 (mm) cerca de 760 18650 células | Capacidade de carga máxima: | 200-400pcs ((bateria de lítio 18650 padrão) |
| Sistema operacional: | sistema integrado + ecrã homem-máquina | Modo de transmissão: | passo + correia + trilho de guia linear de precisão importado (servo + parafuso opcional) |
| Destacar: | tab type lithium battery spot welder,cylindrical core spot welding machine,automatic single side spot welder |
||
Descrição de produto
Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder
Main functions:
Cylindrical single-sided automatic welding of the cylindrical cells
The cylindrical battery pack is automatically welded with BMS PCB nickel pad
Product characteristics:
♦ The warranty has the warranty is two years
♦ Equipment debugging is easy to learn easy to understand, change the model speed is fast
♦ The device has three spot welding data input, array input and U disk input
♦ Point welding specification welding can be set (different current welding for positive and negative electrodes)
♦ Current is too small or abnormal machine automatic alarm and stop operation during welding
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
